ARF Excellence from BVM

#2 scheme

 It’s big, it’s lightly loaded, it’s 95% built, it’s painted and it’s low speed capability allows safe approaches and landings.
And, because it is so “easy on the eyes,” it’s high speed jet-like performance is less challenging.
The KingCat allows a lot of new pilots who prefer larger models to ease into the exciting world of turbojet flying.

The first prototype was demonstrated in 2003 and since that time, there are hundreds of KingCat's flying around the world. With the easy of transport, stable flight characteristics and grass field capability, there's no wonder why many jet pilots own a KingCat as part of there fleet.
For the aerobatic flyers, the KingCat can perform just about any maneuver from the IMAC schedule. For the newbie, it offers very positive slow flight stability such that "learning to fly a jet" will be very easy indeed. Short take-off's and landings, allows jet operation from most R/C club fields.

The KingCat's large fuel capacity affords 15 minute flights. The externally mounted engine contributes to the simplicity of operation.
All new tooling and fixturing, combined with improved painting techniques and very diligent quality control measures allows us to offer you a better product.
Professional ARF assembler Barry West who has lots of KingCat experience has this to say about the '07 versions. "I have delivered 17 turnkey KingCat's since 2003 and can testify to the many improvements in these 2007 ARF kits. The paint is definitely better and the wing/boom/fuse fits are much more consistent. It is surely an improved product and a great value."

Indigenous to high altitude
and short field operations

These same light wing loading and high power loading features allow the KingCat to operate at high density altitudes and from more confined grass field model flying sites with less challenge to the pilot.
The huge flaps produce a rapid lift off when set to about 15° deflection. At 40°, they allow you to drag the KingCat around the landing pattern at 40 to 45 mph and drop it in the landing zone with accuracy using the throttle as your primary altitude control.



Specifications
Wingspan: 80"
Length: 94"
Weight: 26 lbs
Wing Area: 1600 in²
Wing Loading: 37oz./ft²
Thrust Class: 19 - 35lbs
Speed Range: 35-200mph
Flight Time: 14 minutes


Features
All composite structure
All controls flex hinged
Painted in the molds - multiple schemes
Huge landing flaps - super slow landings
One large canopy hatch for easy access
Convenient transport - comes apart easily
Landing Gear - all new heavy duty
Designed for grass fields
Large fuel capacity located close to C.G.
Gyro not required
Options
Clear Canopy & Molded Cockpit

Pylons with Bomb Drop
Nose Gear Pocket Cover


KingCat Servo and extension list: click here to download

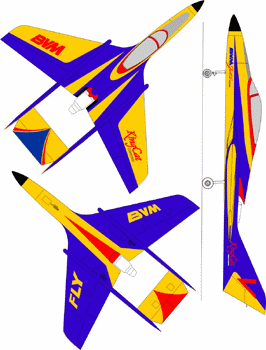

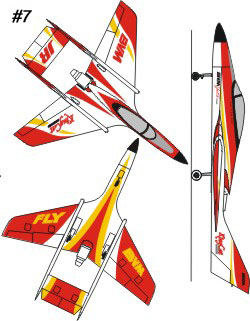

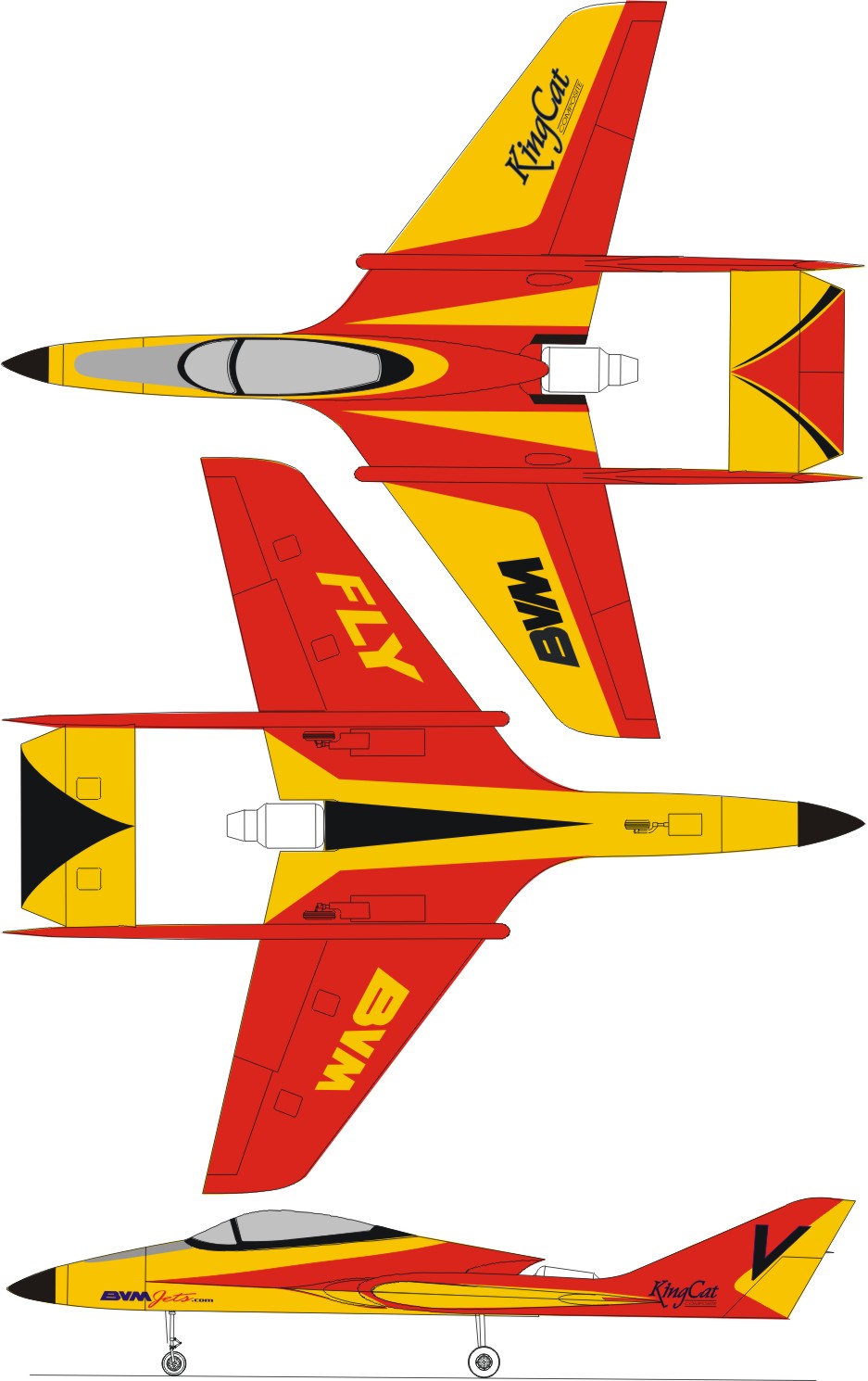

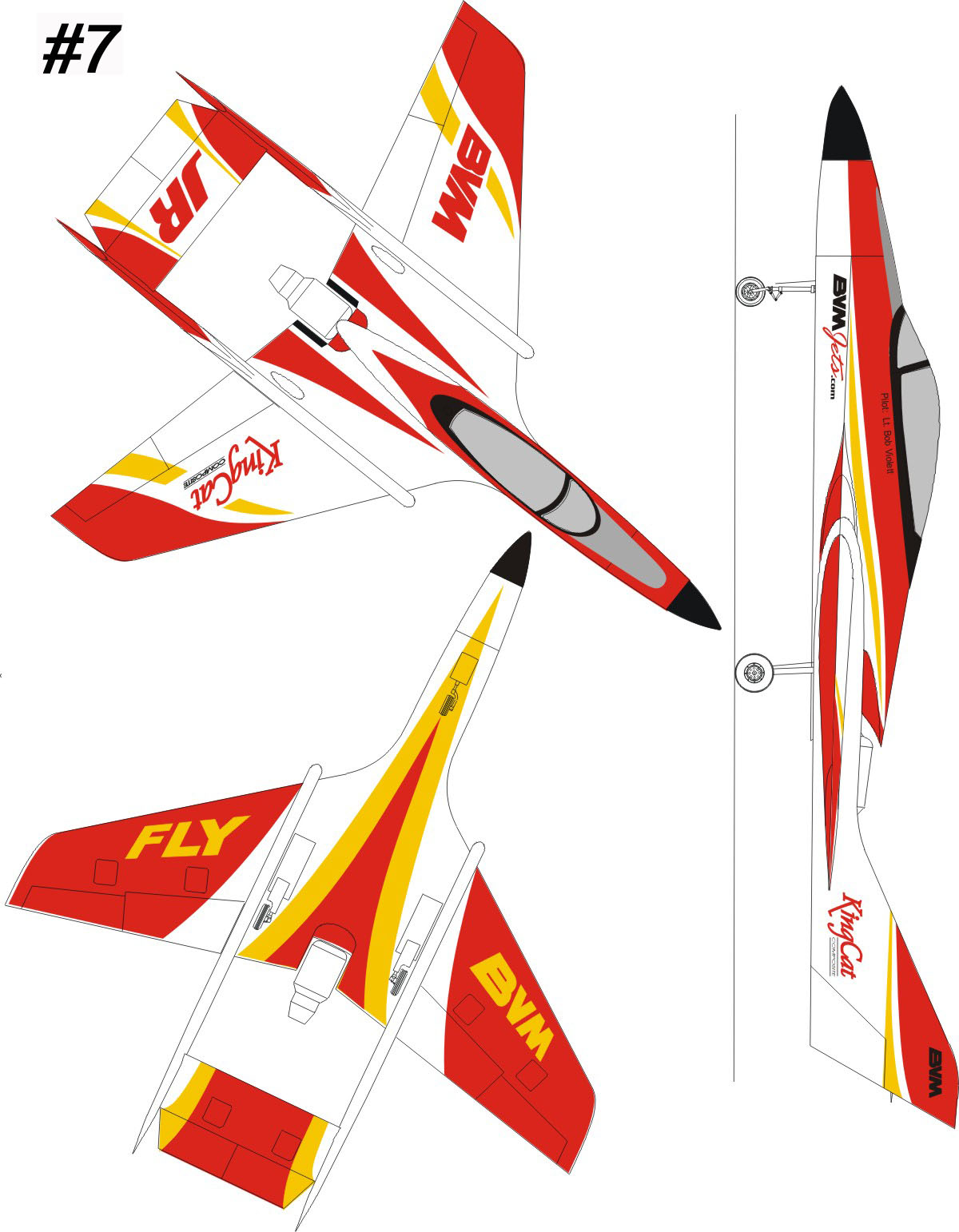

Color Schemes:
Click on images to enlarge

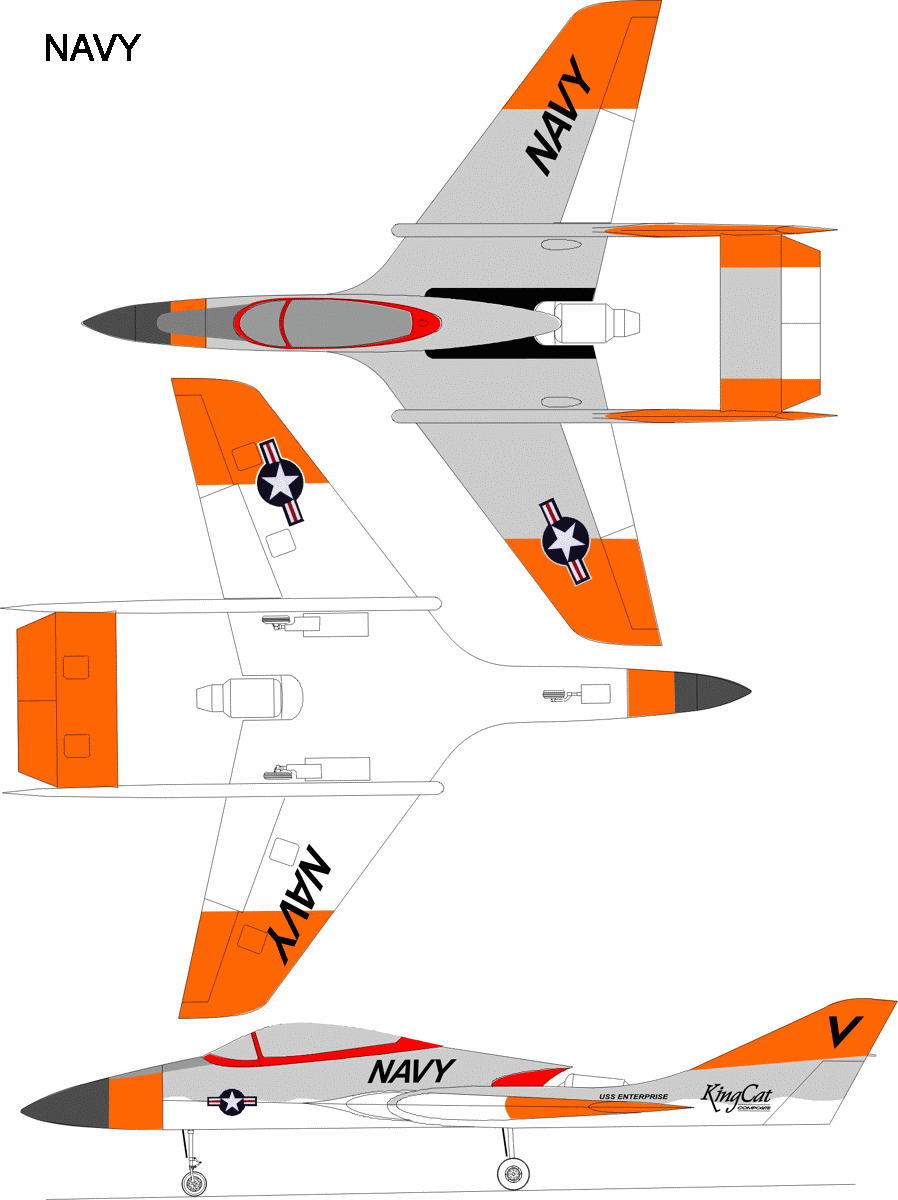

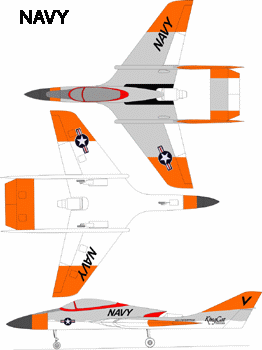

This "Fly Navy" scheme is available now for both the BobCat and KingCat.

It has all of the Hi-Viz qualities to make it easy to see against any sky, and an attractive military theme.



Stronger undercarriage

Since BVM services what we manufacture and sell, we are able to evaluate how our products perform in-the-field, and then improve them.

NEW Improved KingCat main retracts

The complete set of KingCat gear feature heat treated, precision ground steel inner struts with the outer steel sleeves honed for a perfect fit. Machined aluminum sleeves add detail to the outer sleeves. The nose yoke is cast steel. Each strut is sprung for proper shock absorption and grass field tested.
BVM jet wheels and brakes are standard utilizing 3-1/2" diameter on the mains and 3-1/4" on the nose.
The "Oilite" bushed wheels are retained to the precision ground axles with simple "E" clips.
The KingCat main retract units feature stronger side frames. The purple arrows above indicate areas of improvement compared to the original units.

Our retracts, Duro-Struts, wheels & brakes are all designed to endure less than ideal runway conditions and the occasional bad landing. The KingCat's Carbon Fiber flex plates (nose and mains) retain the gear to the fuselage structure and are designed to break and save the airframe in the event of a very rough landing. If you have some spare flex plates in your toolbox, you can be airborne again within a short time and not have to worry about gluing any wood structure back in the model.

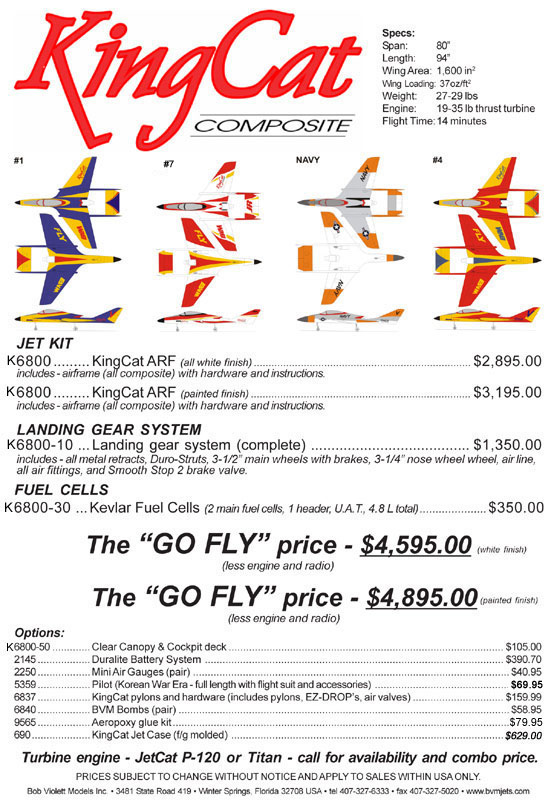

Pricing:

Photo Gallery

click to enlarge

BV with 1st prototype.



JetCat P-160 for power

JetCat shown with smoke system.
