Wing Tanks and mounting parts
with detailed instructions
colors see: Ultra Bandit paint schemes
Call to place
Clear Canopy & Cockpit Deck
The KingCat clear canopy and cockpit deck really
adds to the overall look of your KingCat. An extensive photo instruction package
allows quick assembly of the vacuum formed parts.
|KingCat Clear Canopy and Deck, Part #K6800-50,
|MGA Full length jet pilot , Part #V-MGA
tank pressure readings, etc.)
|These dime size, high quality gauges serve as a quick check
of the integrity of your model's air systems. The dial registers up to 150
psi in 10lb increments.
A laser cut 1/8" plywood board serves as a convenient way to
mount them by hand threading the boss into accurately cut holes. Factory
installed barbed brass nipples will hold the air line very securely to the
back side of the gauges.
A package of 2 gauges also contains 2 "T" fittings and the
|BVM #2250Price: $47.95

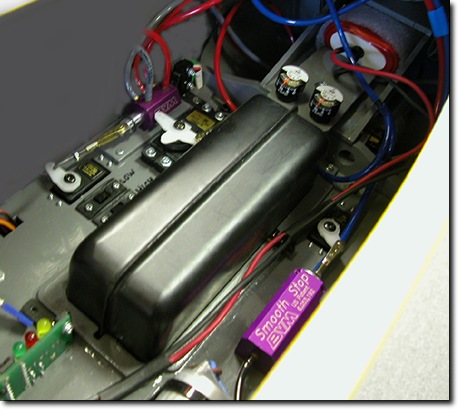

Nose Gear Pocket Cover
When flying off wet grass or a puddled runway,
the nose wheel can spray water up into the wheel well. Since there are electrical
components in that area of the fuselage, there is a chance that they could be
affected. This plastic cover box can be installed to prevent a problem from
|KingCat Nose Gear Cover , Part

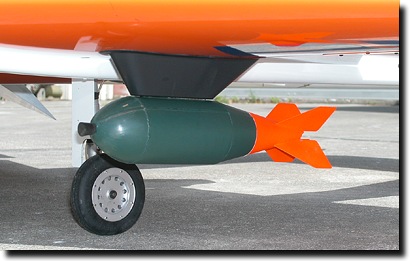

Molded Pylon and Bomb kit
We now offer a quick-to-assemble (no paint
required) pair of pylons for the KingCat.
It is quite possible to adapt to other models as well. See
drawing below for wing bottom curvature.

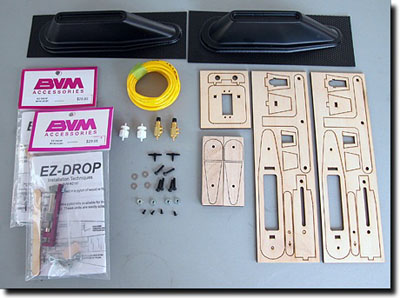

Complete KingCat pylon package
(includes EZ-DROPs, air valves w/laser cut servo mount, pylons
with all hardware).
Suitable for JetCat Airspeed Sensor

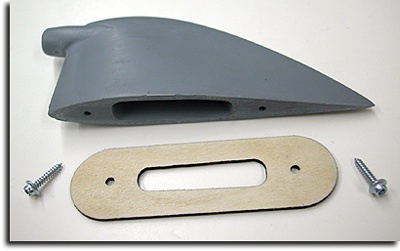

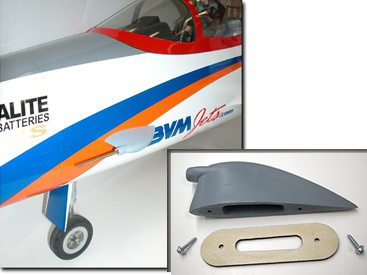

| This urethane resin molded
airspeed Pitot Tube Mount can be used with JetCat (or
similar) AirSpeed Sensors. Contour the airfoiled end to
fit your fuselage such that the Pitot Tube is pointed to
the front of the model and close to parallel to the
For accuracy, it is necessary that the Pitot Tube is at least 1/2" away
from fuselage skin to not be affected by boundary layer
The plywood plate and screws allow attaching it to the fuselage skin. The
fairing can be primed and painted to suit your needs.
|BVM Pitot Tube Mount, Part #6827,
