Jet Central "SE" Smart Electronics ECU System
Metallic robust HDT
Safety acceleration flameout prevention
Self-adjusting features
Easy fine tuning, do more with less adjustment
Simple, graphic navigation menus
Keep track of your telemetry with an easy to use
interface
One-click altitude compensations
All the information you need in an easy to read display
A
powerful turbine producing 25.5 kg (56 lbs) of thrust
ready to fly all the big Jets. The JET CENTRAL TURBINES
ENGINES are in its own right a single stage centrifugal
flow gas turbine engine, configured to operate as a
TURBOJET ENGINE for use mainly, but not exclusively, in
remotely piloted fixed wing aircraft. Such aircraft and
their control systems must be appropriately designed and
constructed to be compatible with the performance of the
TURBOJET ENGINE.

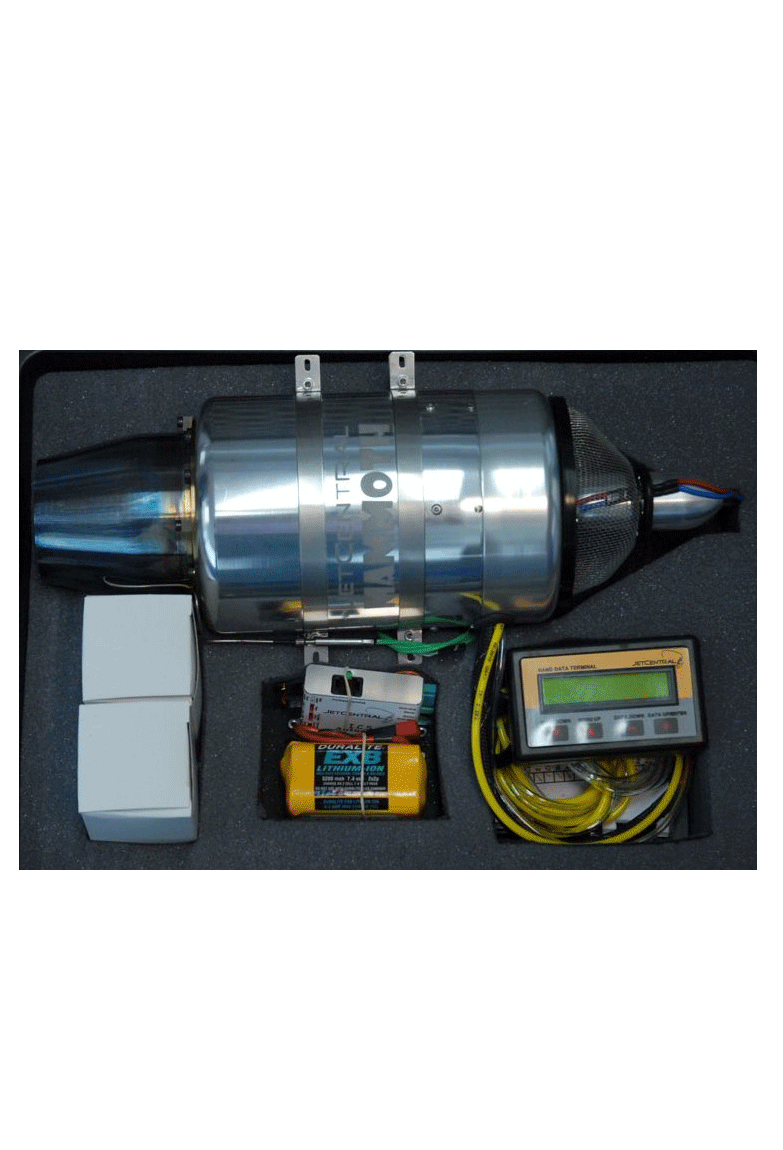

Turbine Engine with integrated ECU
Hard Case
SE POWERPACK Unit
Clear Fuel Line 4mm
Clear Kerosene Start Line 3mm
Clear Fuel Line 6mm
3 Cell LiFePo Battery
Accessory Box
On/Off Manual Festo Valve (6mm.)
Hanger 9 Fuel Filter
S-Bus / Power Cable
USB Flash with Manuals
SE Hand Data Terminal (HDT)
JR Style Receiver throttle cable
Thurst: 250 Newtons. 25.49 kg – 56. (lbs)
Idle Thrust: 0.82 kg (1.8 lbs) @ 28,000 RPM
RPM Range: 28,000 – 108,000 RPM
Weight: 2.28 Kg (5.02 Lbs) with starter
Diameter: 124.1 mm (4.89 in)
Length: 325.40 mm (12.81 in)
Exhaust Temperature: 500ºC – 700ºC
Fuel Consumption: 0,81 Lt/min (28.51 oz/min) @ 104,000
RPM
|
