What is Go Fly Gold?
PRICE $9,599.00
INTRODUCTORY PRICING $8,599.00
Includes BVM
branded Servos
|
Vne
200mph
Limit Thrust to 180-230 Neutons |
Specs:
Length
124"
Wingspan 103"
Weight: 54 Lbs RTF
Fuel Capacity 6 Liters |
|
|
Special Features |
| |
|
|
|
- High Voltage Digital
Servos Installed
|
- Central Control Unit
for gear sequencing and brakes
|
- Fuel Tanks and
Hi-Flow Fuel System installed
|
- Electronic Gear and
Brake Valves
|
- Minimal Assembly Time
Turbine, Receiver, UAT
Installation. Radio Set-up, SD Card
available for Spektrum users
|
- Easy access to all
components
|
|
|
|
|
BVM Servos Now Installed in
Models
BVM servos (32kg and 42kg)
are now installed in our F-16 1:5 scale
model.
The NEW BVM Servos
offer a higher resolution than the previously installed servo's.
The 32kg & 42kg are HV, Digital, and Brushless.
Made by a well known manufacture in Taiwan.
Only available with a
model purchase. Not available for individual sale.
 |
|
BLS 320 Specifications:
Torque @ 7.4v - 32.0kg/444.4oz-in
Speed @ 7.4v - 0.12 sec/60 deg
Refresh Rate: 333Hz
Motor Type: Brushless
Resolution (4096) |
| |
|
|
 |
|
BLS 420 Specifications:
Torque @ 7.4v - 42.0kg/583.3oz-in
Speed @ 7.4v - 0.13 sec/60 deg
Refresh Rate: 333Hz
Motor Type: Brushless
Resolution (4096) |
|
Controls |
QTY |
Servo Type |
| Steering |
1 |
32kg |
| |
|
|
| Aileron |
2 |
32kg |
| |
|
|
| Flap |
2 |
42kg |
| |
|
|
| Rudder |
1 |
32kg |
| |
|
|
| Elevator |
2 |
32kg |
Items Needed
To Complete:
Available from BVM
● Engine of your choice.
● BVM Hi-Flow U.A.T. (BVM# TA-SR-1001)
*optional
● 14 Channel Receiver
● (2) Pulse 3600mAh 2S
7.4V 15C (# V-PLURX15-36002)
● (1) Turbine Battery |
Wheel Axle Grease
(BVM# 5784) |
|
Super O'Lube
(BVM# 5779) |
Heat Shield
(BVM# PA-MA-1940) |
Options Available:
# K7200-50 Canopy / Cockpit
$175.00
Click Here to see the variety of 12" Tall Pilots that BVM has to
offer.
BVM GFG Over Flow Tank (BVM # 6037)
Paint Schemes
click on images to enlarge
|
|
|
# K7200-12 |
# K7200-08 |
|
|
|
|
|
 |
 |
|
Available in different color
combinations of your choice |
|
|
# K7200-03 |
# K7200-02 |
|
|
|
 |
 |
|
Available in different color
combinations of your choice |
|
| #
K7200-01 |
# K7200-04 |
| |
|
 |
 |
|
Available in different color
combinations of your choice |
| #
K7200-05 |
#
K7200-07 |
| |
|
 |
 |
|
# K7200-06 |
# S2 |
| |
|
Custom schemes available
Customer Hotshots
click on
images to enlarge
Heather.
Here are a few pictures of my BVM Desperado. This is
the first turbine jet of this caliber I have built.
It's powered by a Swiwin turbine and controlled by a
JR-Elite radio and has a Cortex Pro gyro in it.
Kenny Griesmann |
|

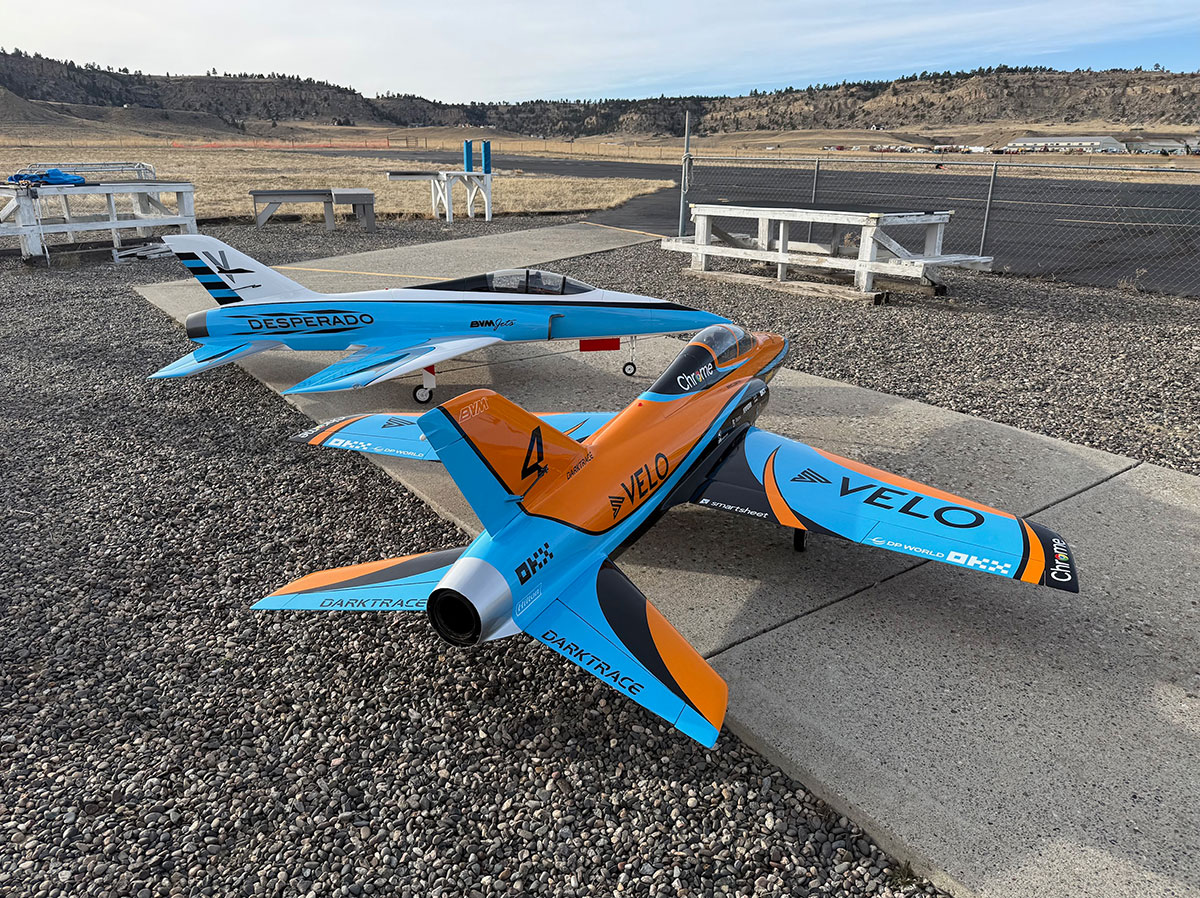

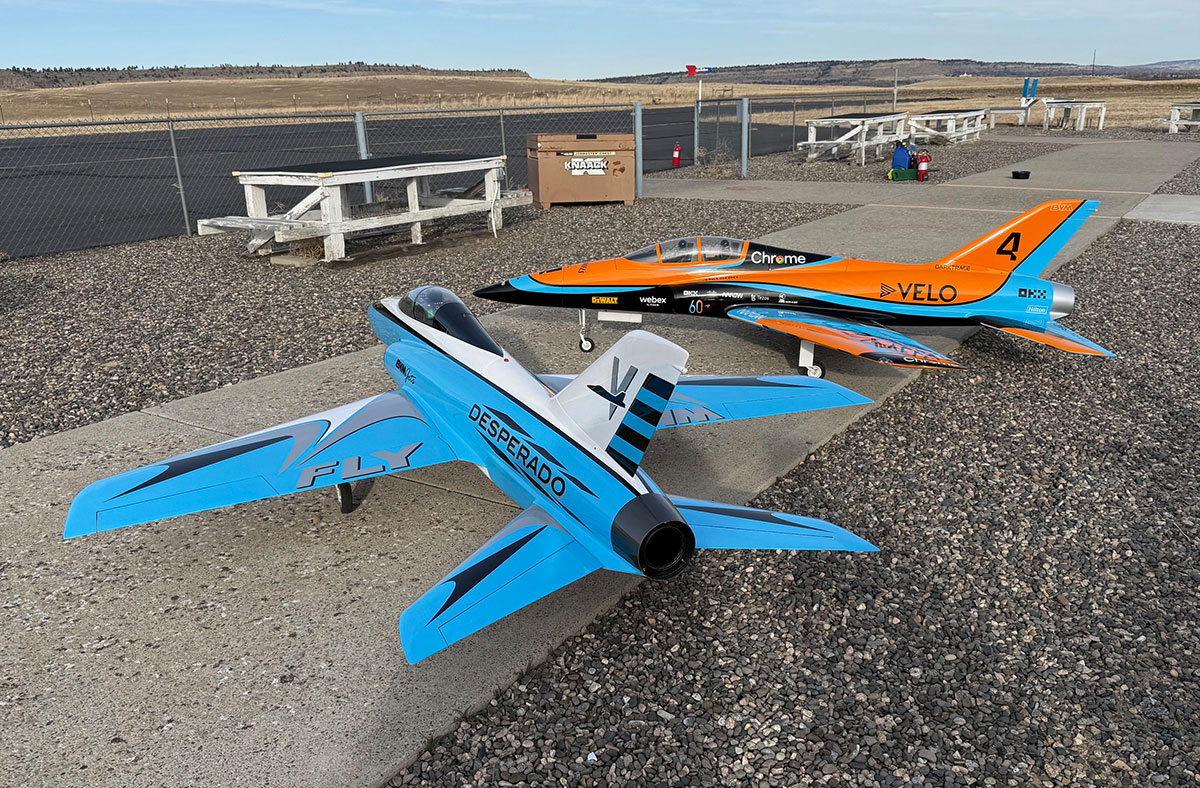

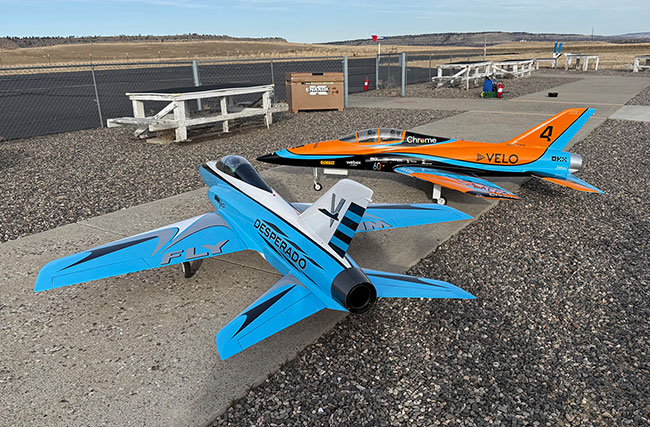

Heather,
I
just wanted to share a few pictures of my BVM
Jets Desperado. The finish is beautiful and the
craftsmanship is second to none.
Chris
Kaiser |
Good morning,
Just want to report that yours truly won the top
award of Top Gun at the "Thunder in the Valley Jet
Rally" flying my new BVM 1/5 F16 and the Desperado.
Both are equipped with JR 28 Elite, KT260 and Cortex
gyro.
Regards,
Richard Verano
|
|
Michael
Sarysz's new Desperado in the MK Raiden Scheme. It’s
powered by an Evo220 Neo turbine. Guidance is a
Powerbox Competition SR2 and stabilized with a
cortex pro. All stock PNP BVM Branded Servos. |
| A Big Congratulations to
Richard Verano on winning the "Best Sports Jet"
award at the Bear Mountain event with his BVM
Desperado. Richard's
Desperado is equipped a with JR Elite radio,
KingTech 260G4 and Cortex Pro gyro. |
