BVM PNP F-16  1:4 Scale





PRICE $12,999
Shipping Not Included

Includes NEW BVM branded Servos

What is Go Fly Gold?

Specs:
Length 149"  w/o Nose 131"
Wingspan  93"
Weight: 88 Lbs wet, no smoke
               95 Lbs w/smoke
Power: 300 - 350 Newtons


* LTMA2* Requires an LTMA Inspection

NOTE: This airplane full of Fuel and Smoke will meet the requirements for the AMA Large Model Airplane Program. Please click below for more information on the LTMA2 Program.

https://www.modelaircraft.org/largemodelairplane

Clicking on the link above will take you from the BVM website to the AMA website.



Special Features Installed

  • Pneumatic Scale Retracts

  • Scale cockpit, painted and assembled

  • Tailpipe for turbine engines installed

  • Afterburner Ring

  • Smoke System

  • Light System

  • Operational Canopy

  • Speed Brake

  • BVM "Hi-Flow" Fuel System with fill valve

  • Central Control Unit for landing gear, doors, wheels brakes, and light systems

  • All Servos (BVM BLS/HV) installed

  • 9 Liter tanks, 2 Liter smoke tanks




BVM Servos Now Installed in   Models

BVM servos (320kg and 420kg) are now installed in our F-16 1:4 scale model.

The NEW BVM Servos offer a higher resolution than the previously installed servo's.

The 320kg & 420kg are HV, Digital, and Brushless.

Made by a well known manufacture in Taiwan.

Only available with a model purchase. Not available for individual sale.

  BLS 320 Specifications:
Torque @ 7.4v - 32.0kg/444.4oz-in
Speed @ 7.4v - 0.12 sec/60 deg
Refresh Rate: 333Hz
Motor Type: Brushless
Resolution (4096)

  BLS 420 Specifications:
Torque @ 7.4v - 42.0kg/583.3oz-in
Speed @ 7.4v - 0.13 sec/60 deg
Refresh Rate: 333Hz
Motor Type: Brushless
Resolution (4096)


Controls QTY Servo Type
Steering 1 32kg

Aileron 2 42kg

Rudder 1 42kg

Elevator 2 42kg

Canopy 1 32kg






Items Needed To Complete:
Available from BVM:

● 300 - 350N engine of your choice.

● Receiver of your choice

● Cortex Gyro

● (2) 5000mAh Lipo RX Battery




Want to take the Go Fly to the next level?



Contact BVM for the Platinum pricing.



What is Go Fly Platinum?



Recommended Accessories:

Pulse Ultra Batteries

You may have some of these products in your shop, but if not, refer to this list.

#V-WB 15 JET PILOT     15" Jet Pilot Modern   $139.99

● BVM “O Clips” (#PA-SR-0026)

● BVM Velcro Package (#PA-SR-0081)

● Safety Wire (BVM# 2800)

● (2)12” battery extension wire (#VJ-SPMEXEC312)

● BVM GFG Over Flow Tank (for Smoke System) (BVM# 6037)

● Flush Mount Vent Fitting (#PS-SP-0301)
       (For Over Flow Tank)

● Flush Mount Vent Plug (#PS-SP-0302)
       (For Over Flow Tank)

● HD Y Harness (#VJ-JRPA135)

● Male/Male Lead (#VJ-JRPA050)



5 Gal GFG Fuel/Smoke System

# PA-SR-0154

$259.00





BVM Air Inflator Adaptor

# PA-SR-0153

$19.99

*This adaptor is not designed to retain pressure*



List of Adhesives/Lubricants:




PRICE $12,999

What is Go Fly Gold?

Custom paint schemes are available for up to a $500.00 artwork, documentation and development fee.

There are many paint scheme options that are not currently on our site.  We are working diligently to update the website with all the existing schemes. Please give us a call if you have a scheme in mind to see if it is already in our archive.



Thank you for your understanding and continued support.


Paint Schemes:

 Block 60 Test Pilot School

 Homestead Florida Makos 35th Anniversary

 Royal Thai Airforce Centennial


  Black Panther

  Black Wraith


 Tigers

 Danish


Fantasy Belgium

 2-3 Tone Grey, Black Dragon


 Ace In The Hole

Italian Air Force

 Blue Splinter  Aggressor Green (Lizard)

 Dark Falcon



 Greek


Texas Retro




 Singapore Knights


 Indiana ANG




 Alaska


 General Dynamics


 2-3 Tone Grey

  2-3 Tone Grey Arkansas


 Navy Aggressor

 ThunderBird


  Edwards Chase

 Texas ANG


  Minute Men

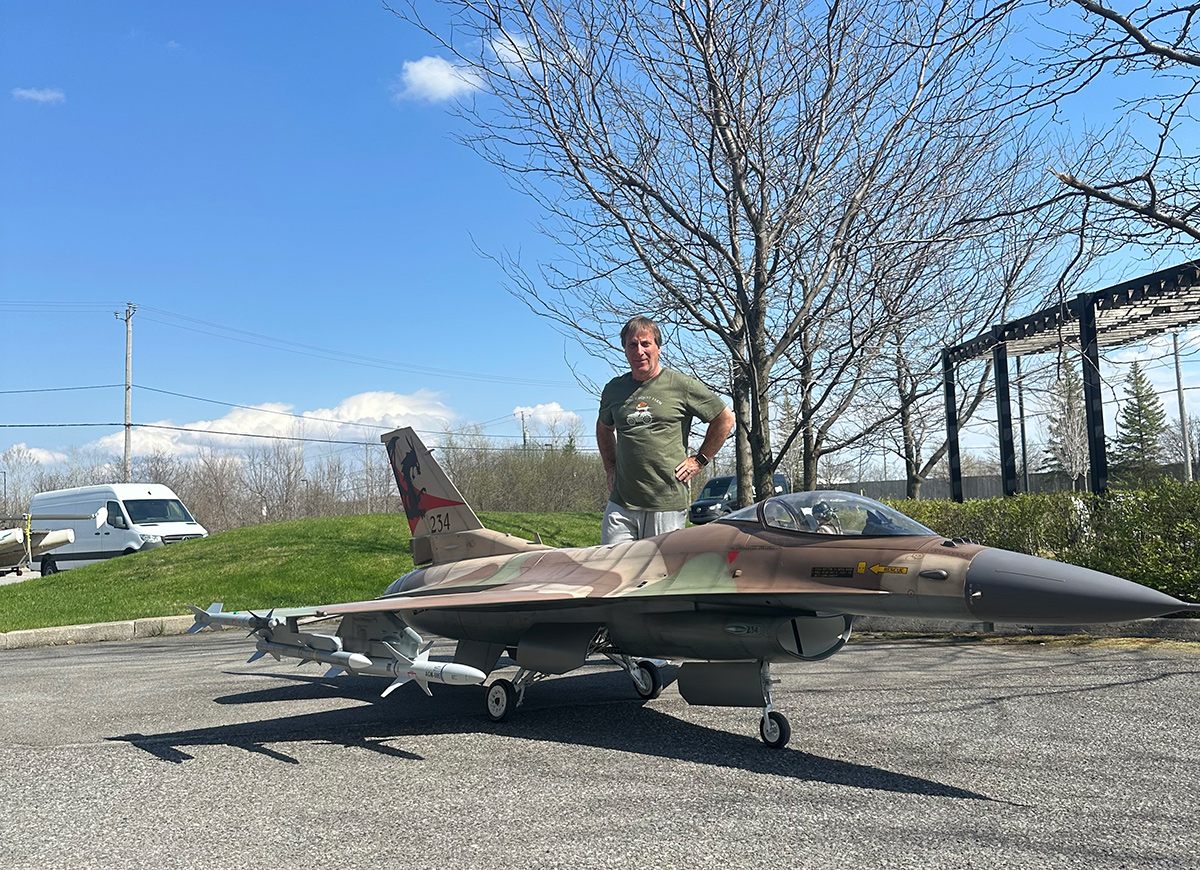

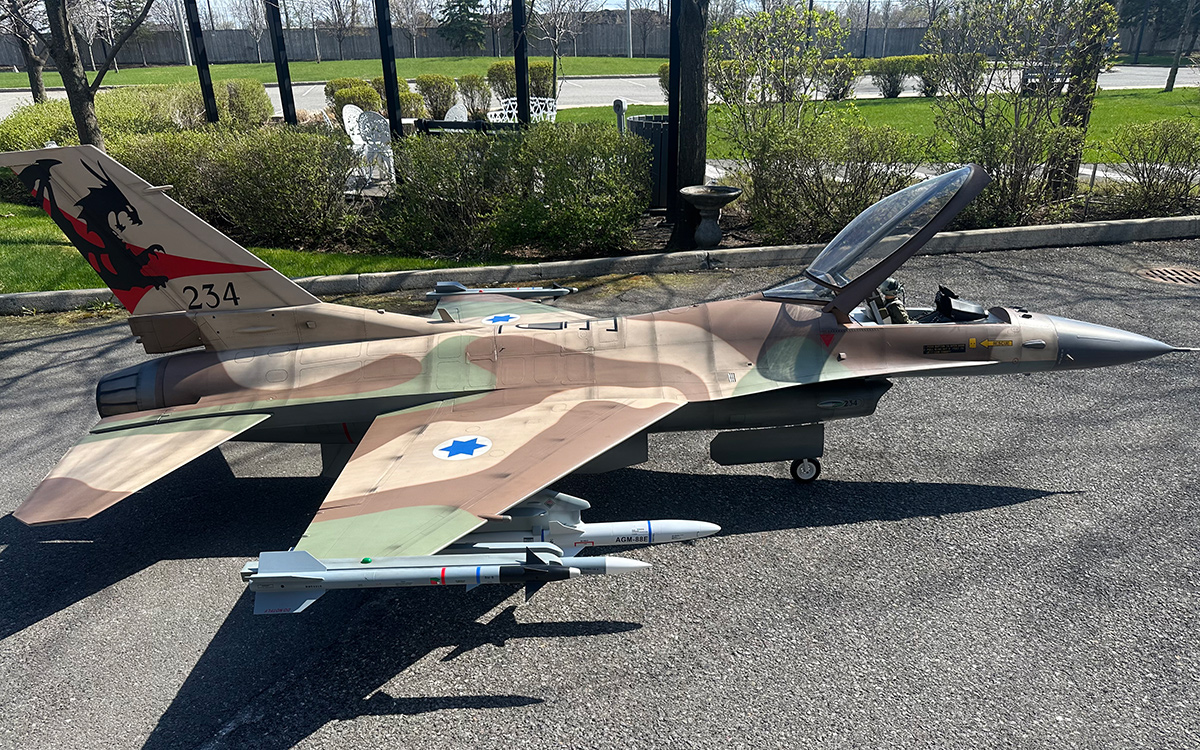

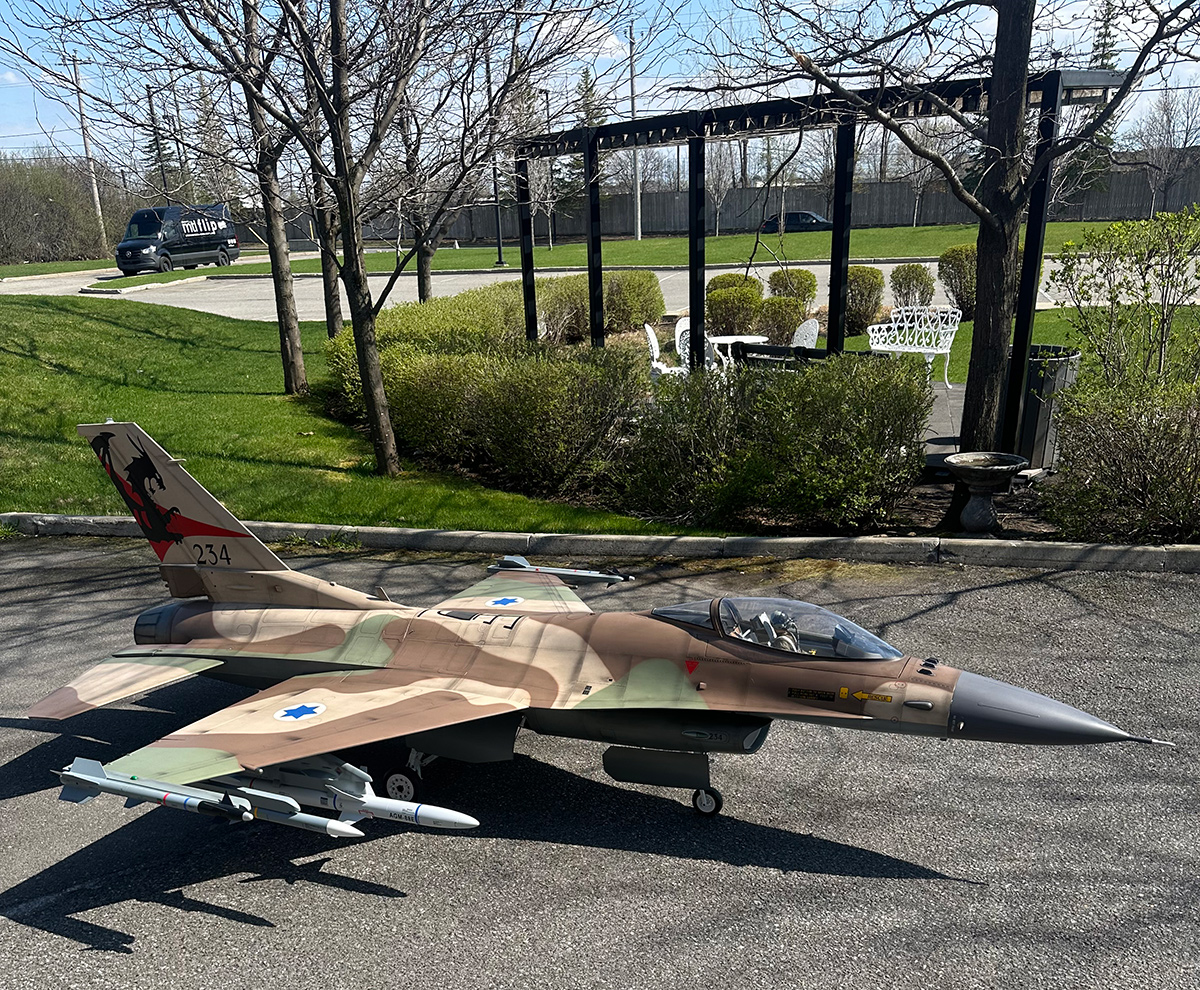

  Israel
