 Since the start of the KingCat, RC enthusiasts have used this platform to further their flying endeavors with it's trainer like flying characteristics. While having the agility of an advanced fighter jet makes the KingCat extremely versatile.

 BVM has listened to what flyers said they would like to see and have developed new features to an already time proven aircraft.

 With new Trailing Link Struts on the Nose and Main Gear and a removable Nose Cone and Canopy with no tools required. Also easier Servo Mounting and faster building. This KingCat has new exciting schemes as well as all the original schemes.

PRICE $7,699.00

*Finished In The USA*

Vne 200mph
Limit Thrust to 120-180 Neutons

Specs:
Length 94"
Wingspan 80"
Weight: 29 Lbs
Power: 120-180 Neutons








Special Features


  • New BVM Factory Installed Nose Cone and Formers
  • New Servo Mounts to Speed Assembly
  • New Nose Cone Held by Carbon Rods
  • Metal Flap Servo Arms Supplied
  • New Landing Gear

  • Surface Mounted Flex Plates for Landing Gear
  • New Trailing Link Struts
  • High Voltage Digital Servos Installed
  • Central Control Unit for gear sequencing and brakes
  • Kevlar Fuel Tanks installed, 4.8 Liters Capacity
  • Electronic Solenoid for Gear and Brake Valves
  • Minimal Assembly Time
    Turbine, Receiver, UAT Installation. Radio Set-up
  • Easy access to all components
  • Grass field capable.

BVM Servos Installed in   Models

BVM servos (12kg and 32kg) are installed in our KingCat model.

The 12kg & 32kg are HV, Digital, and Brushless.

Made by a well known manufacture in Taiwan.

Only available with a model purchase. Not available for individual sale.


  CLS 120 Specifications:
Torque @ 7.4v - 12kg/166.6oz-in
Speed @ 7.4v - 0.55 sec/60 deg
Refresh Rate: 333Hz
Motor Type: Coreless

  BLS 320 Specifications:
Torque @ 7.4v - 32.0kg/444.4oz-in
Speed @ 7.4v - 0.12 sec/60 deg
Refresh Rate: 333Hz
Motor Type: Brushless
Resolution (4096)

Controls QTY Servo Type
Steering 1 12kg

Aileron 2 32kg

Flap 2 32kg

Rudder 2 32kg

Elevator 2 32kg







Nose and Main Trailing Link Gear



Easy Access to Components Large Open Fuse Area



New Surface Mounted Gear





New Servo Mounting Plates speeds the assembly process.





Items Needed To Complete:
Available from BVM



● Engine of your choice 120-180 Neutons.

● 12 Channel Receiver

● (2) ThunderPower 7.4v Batteries 4000mAh (# TP4000-2SPXRX)
      or   Pulse 3600mAh 2S 7.4V 15C (# V-PLURX15-36002)

Wheel/Axle Grease
Wheel Axle Grease
(BVM# 5784)
Super O-Lube
Super O'Lube
(BVM# 5779)
Want to take the Go Fly to the next level?



Contact BVM for the Platinum pricing.



What is Go Fly Platinum?




Recommended Accessories:



● Spektrum 14400T Power Safe Receiver (# VJ-SPMAR14400T)

● BVM GFG Over Flow Tank (BVM # 6037)



Options:

Wing Tanks and mounting parts
with detailed instructions   #K6800-40  $585.00













KingCat Clear Canopy & Cockpit Deck

 The KingCat clear canopy and cockpit deck really adds to the overall look of your KingCat. An extensive photo instruction package allows quick assembly of the vacuum formed parts.

KingCat Clear Canopy and Deck, Part #K6800-50, $105.00




Demon Aero Cortex Gyro Pro
(# V-DA-BD-CortexPro)

Aeropoxy
(BVM# 9566)

QT Poxy
(BVM# 9580)

Slo-Zap
(BVM# PT20)

Pacer Z-42
(BVM# PT42)

Thin Lube For O'Rings
(BVM# 1945)

Dry Lube
(BVM# 1947)


5 Gal GFG Fuel/Smoke System

# PA-SR-0154

$259.00

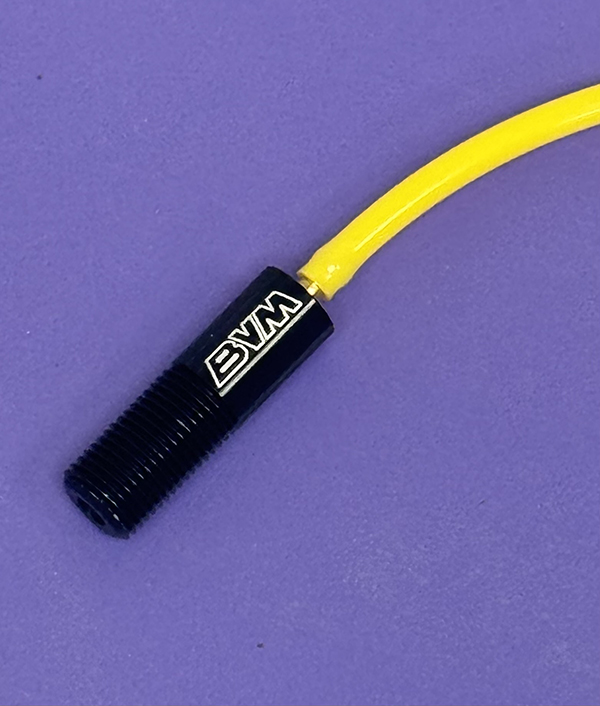

BVM Air Inflator Adaptor

# PA-SR-0153

$19.99

*This adaptor is not designed to retain pressure*



Paint Schemes

click on images to enlarge




# K6900-19  Tigermeet








Also Available:

HiViz
